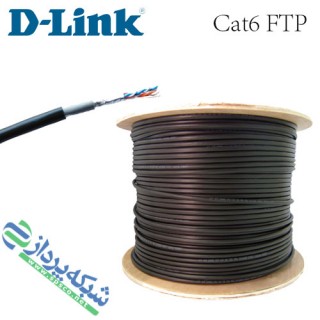

• 4 Pairs Foilded Twisted Pair (SFTP) Cable
  • Conductor Metal: Solid Bare Copper with 23 AWG
  • Shield: Aluminum Polyester Foil
  • Color Code: Black
  • Drain Wire: 26 AWG
  • Jacket Material: Double sheath, PVC Inner Sheath, UV PVC Outer Sheath
  • PE Central Cross separator
  • Mutual Capacitance: 5.6nF/100m nominal
  • Characteristic Impedance: 100Ω±15%
  • Nominal Velocity of Propagation: 69%
  • Conductor Resistance: : < 9.38?/100m
  • Resistance Unbalance: : 5 % Max
  • Capacitance Unbalance:  330pF/100m
  • Delay Skew: : < 45nS
  • Conductor Diameter: 0.560mm Nominal
  • Insulation Diameter: 1.14 Nominal
  • Insulation Material: HD-PE
  • Cable Diameter : 8.6mm Nominal
